cup forming machinery from China manufacturer - Ruian Ruihua Vacuum Forming Machinery Co., Ltd.

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TF-660

Height of forming: ≤165mm

Power of oven: 24KW(Upper Oven) 18KW(Low...

Length of forming: 760-1200mm

Production Speed: 60-720Cycles/h

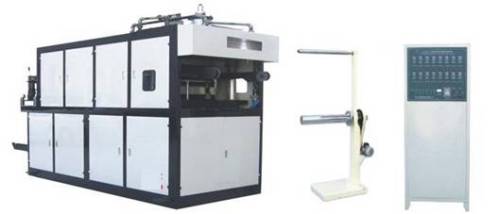

Cup Forming Machine

Cup Forming Machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by micro PLC. It is operated with man-interface, which can works all by itself. It combines the material feeding, heating, drawing, forming, cutting and transporting into one process.

Application Area:

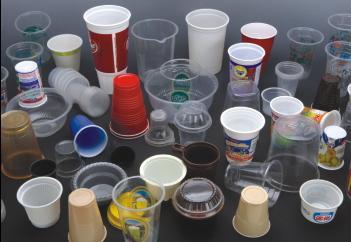

It is used for forming PP, HIPS, PET, PVC, PE plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups, chocolate package boxes, candy boxes, candy boxes and fast-food boxes etc.

Main Specifications:

Model	TF-660
Max. Forming Area	580×250mm	Capacity	10-30Mold/min
Max. Forming Depth	120mm	Power	3×380V+NP+PE.50HZ
Sheet Width	500-660mm	Heating Power	60kw
Sheet Thickness	0.20-2.0mm	Main Motor Power	5.5kw
Max. Roll Diameter	710mm	Feeding Motor Power	2.2kw
Air Pressure	0.7Mpa	Scrap Rewinding Motor Power	0.37kw
Water Consumption	100L/min (15-20℃)	Overall Dimension	3300×1650×2250mm
Air consumption	2000L/Min	Weight	4000kg
